CAPACITORS SPECIFICATIONS




 Previous  Page 4 of 4














Ripple Current Frequency Characteristics
The ESR (Equivalent Series Resistance) value decreases with increased frequency allowing for higher ripple current, for the same power loss and life. The rated current values shall therefore be multiplied by the frequency correction factor Kt at operating frequencies other than 100 Hz.

Ripple Current Temperature Characteristics
When Capacitors are operated at temp other than 85°c, the ripple current specified at 85°c must be multiplied by the correction factor Kt. This is subject to the ripple current not exceeding the safe current carrying capacity of the terminal insert. Refer note at the end of the product range table.


Freq. In Hz
Correction Factor
Kt.
100
1.0
300
1.15
600
1.5
1200
1.32
>1500
1.35

Temp. 0°c
Correction Factor
Kt.
35
2.40
45
2.20
50
1.80
65
1.60
70
1.40
85
1.0

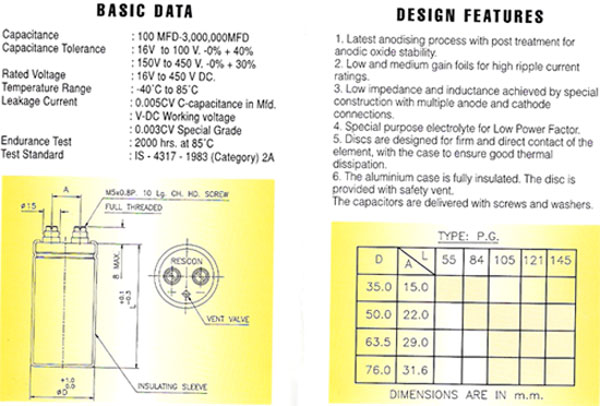

Rescon Capacitors Specifications :
Page {1}{2}{3}{4}
